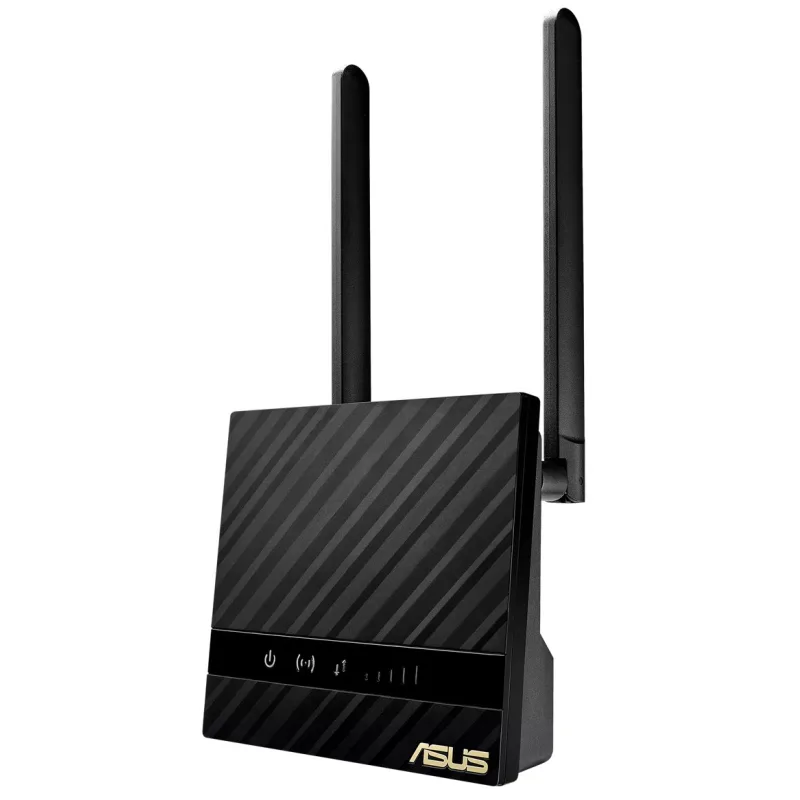

N300 Wi-Fi 4G LTE Router, Build-In 150Mbps 4G LTE Modem SPEED: 300 Mbps…

Specifikacia N300 Wi-Fi 4G LTE Router, Build-In 150Mbps 4G LTE Modem SPEED: 300 Mbps…

MB112-4G 300 Mbps Wireless N 4G LTE Router 4G network – Enjoy the 4G LTE download speeds up to 150 Mbps. Plug a SIM karta a play – bez ohľadu na to, čo je potrebné, kompatibility s SIM kartami sú určené pre testov 300 Mbps WiFi – Fast WiFi speeds up to 300 Mbps to share your network Simultaneous Connection– Share internet access with up to 32 Wi-Fi devices Wi-Fi router mode – Plug an Ethernet cable do LAN/WAN port pre flexibilný prístup if you can"t get a 4G connection 4G Network Type LTE Band of EU: • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) Carrier Aggregation of EU: B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41 B3+B3/B5/B7/B8/B20/B28/B38/B40/B41 B5+B5/B7/B38/B40/B41 B7+B7/B8/B20/B28/B32 B8+B32/B38/B40/B41 B20+B32/B38/B40 B28+B32/B38/B40/B41 B38+B38 B40+B40 B41+B41 LTE Band of US: • 4G LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B25/B26/B29/B30/B66/B71 (1950/2100/850/2600/750/750/750/1950/850/700/2350/2150/650 MHz) • 4G LTE-TDD: B41/B48 (2500/3600 MHz) Carrier Aggregation of US: B2+B2/B4/B5/B7/B12/B13/B14/B29/B30/B48/B66/B71 B4+B4/B5/B7/B12/B13/B29/B30/B71 B5+B5/B7/B25/B30/B41/B66 B7+B7/B12/B66 B12+B12/B25/B30/B66 B13+B66 B14+B30/B66 B25+B25/B26/B41 B26+B41 B29+B30/B66 B30+B66 B41+B41 B48+B48 B66+B66/B71 SIM Type 1× Nano SIM Card Frequency • Downlink: 300 Mbps; • Uplink: 50 Mbps SECURITY Access Control Source/Destination IP Based Access Control Filtering • Web Group Filtering† • URL Filtering • Web Security† ARP Inspection • Sending GARP Packets • ARP Scanning† • IP-MAC Binding Attack Defense • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN HARDWARE FEATURES Interface • 1 Gigabit SFP WAN/LAN Port • 1 Gigabit WAN Port • 4 Gigabit LAN/WAN Ports Network Media • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m) Button Reset Button Power Supply 12VDC / 2A Power Adapter Wi-Fi Frequency & Signal Rate • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) Flash 128 MB NAND DRAM 512 MB DDR4 LED SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act) Dimensions ( W x D x H ) 8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are not included) Antenna • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas • LTE: Two 4.0dBi omnidirectional detachable antennas Mounting Desktop/Wall-Mounting Max Power Consumption EU: 15.4W US: 17.3W PERFORMANCE GRE • Unencrypted: 545.3Mbps • Encrypted: 282.6Mbps WireGuard VPN 387.7Mbps Concurrent Session 150,000 New Sessions /Second 5,100 NAT (Static IP) 947.1Mbps / 940.1Mbps NAT(DHCP) 949.2Mbps / 941.1Mbps NAT(PPPoE) 942.6Mbps / 941.1Mbps NAT (L2TP) 875.4Mbps / 892.0Mbps NAT (PPTP) 881.2Mbps / 895.8Mbps IPsec VPN Throughput • ESP-SHA1-AES256: 652.2Mbps • ESP-SHA256-AES256: 654.4Mbps • ESP-SHA384-AES256: 646.5Mbps • ESP-SHA512-AES256: 670.5 Mbps OpenVPN 115.5Mbps L2TP VPN Throughput • Unencrypted: 990.0Mbps • Encrypted: 475.0Mbps PPTP VPN Throughput • Unencrypted: 1177.9Mbps • Encrypted: 177.4Mbps SSL VPN Throughput 122.5Mbps 66 Byte Packet forwarding rate 1,453,489 pps / 1,453,488 pps 1,518 Byte Packet forwarding rate 81274 pps / 91275 pps WIRELESS FEATURES Advanced Functions • Seamless Roaming • Mesh (with EAP that supports Mesh) • OFDMA • Beamforming • MU-MIMO • Rate Limit: Based on SSID/Client • Airtime Fairness • Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise • Multiple SSIDs: 16 in total (8 per radio) Guest Network Support BASIC FUNCTIONS WAN Connection Type • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP MAC Clone Modify WAN Address DHCP • DHCP Server • DHCPv6 PD Server (only in Standalone Mode) • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP SMS Receive / Send SMS IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode VLAN 802.1Q VLAN IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode ADVANCED FUNCTIONS ACL IP/Port/Protocol/Domain Name Filtering Advanced Routing • Static Routing • Policy Routing • RIP† • OSPF† Bandwidth Control IP-Based Bandwidth Control Load Balance • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection NAT • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP Session Limit IP-Based Session Limit VPN GRE Only in Standalone Mode SSL VPN 50 Tunnels IPsec VPN • 100 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IPsec Failover • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT
